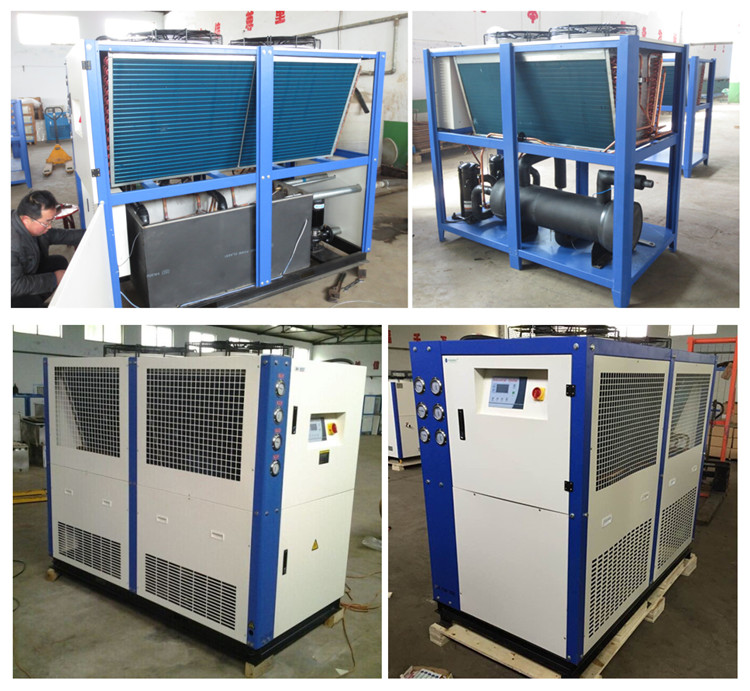

20 Ton Glycol Water Chiller for Beer Fermentation Tanks/Fermenting Tank
1.Features and low temperature chiller details:
- .Outlet chilled water temperature range: -5~+35 degree
- World name brand compressors from Bitzer/Germany, Danfoss/France, Copland/USA, Sanyo/Japan,etc;
- Internal electric components from Schneider/France, Siemens/Germany,etc;
- Built-in water pump from Minamoto/Taiwan;
- High efficiency condensers: copper tube coils and aluminum fins with low noise radial fans; cool the water in a short duration to reduce the power consumption;
- shell and tube type evaporator also available;
2.Technical specification
Model | Unit | MG-25CL(D) |
Nominal cooling capacity | kcal/h | 51170 |
KW | 59.5 |
Input power | KW | 23.45 |
Power supply | 3PH-380V-50HZ(220V/440V/415V/460V-50HZ/60HZ) |
Refrigerant | Type | R22/R134a/407c |
Type of control | Thermostatic expansion valve |
Compressor | Type | Hermetic scroll |
Power(kw) | 17.6 |
Condenser | Type | Finned copper tube |
Evaporator | Type | Tank with coil/shell and tube |
Chilled fluid flow(L/min) | 139.9 |
Volume(L) | 350 |
Inlet and outlet pipe diameter(mm) | DN25 |
Fan motor | Power(kw) | 1.4 |
Pump | Power(kw) | 1.5 |
Lift(m) | 18 |
Dimension | LxWxH(mm) | 2270*1150*1930 |
Weight | kg | 850 |
Safety protection | compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing |

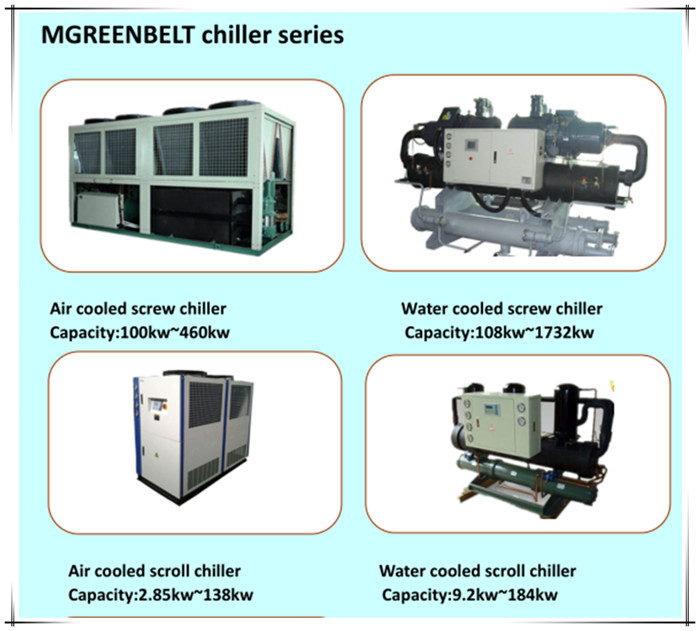

3.More related water chillers in production:
*Air cooled water chiller: 1.5~566kw(cooling capacity)
4.Features & Benefits
- Power supply:1/3PH-220V/380V/415V/460V/480V-50HZ/60HZ
- Eco-friendly Refrigerant R22/R404a
- Set temperature range: From -35 to +35°C
- Cooling capacity: 1HP-50HP
- Compressor type:Scroll type
- Compressor brand:Sanyo,Copeland
- Stainless Steel storage tank or shell and tube evaporator with insulation packing
Benefits:
- Fully Packaged with Integrated Pump and TankLowest Operating Costs
- Generous Operating Limits
- Weatherproof Construction
- Individually Tested for Assured Quality
- Extremely Precise Water Temperature Control
- For full list of benefits and details click here to review the brochure

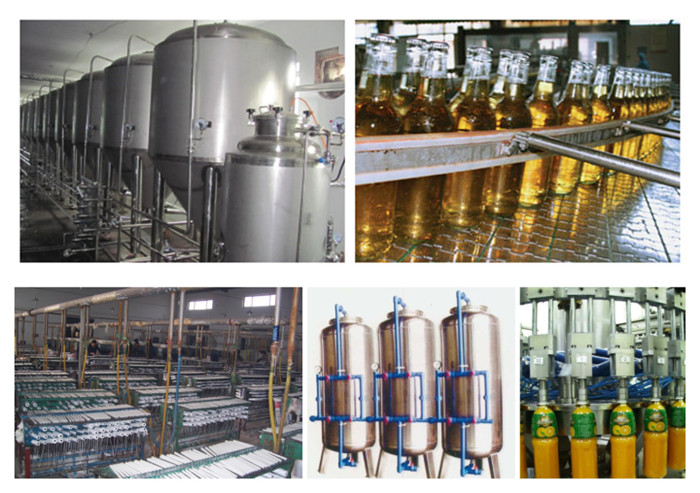

5.Applications industry
It is widely used in many industries, including Plastic injection molding industry,chemical,paper making industry,electronics, pharmacy, food and beverage processing industry, aluminum profiles, aluminum alloys, tempering glass, coated glass industry, CNC machinery industry,laser technology, laser technology, jewelry processing, leather processing, cultivation industry, etc.
6.About us
Our company --Shandong Mgreenbelt Machinery Co., Ltd has 10 years' making experiences and OEM& CE approval in chillers, especially water cooled, air cooled and screw chillers. The compressor and pump all import from Japan and ASIA customers said that 30% higher cooling capacity than others.
If any further questions or inquiry please contact with us:
Ms Grace Zhang
Ph:+8618615626360
Skype:mb.gracezhang
Email:mg.chillers at gmail.com
